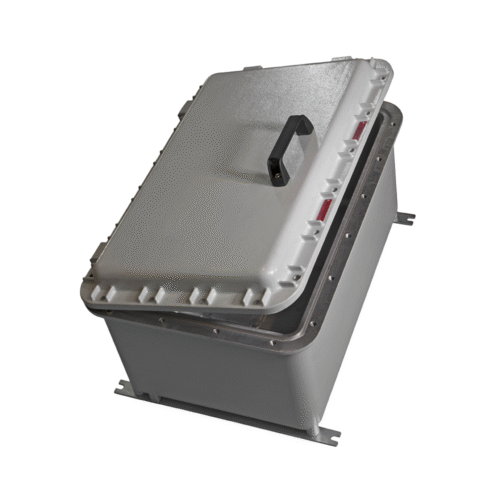

EJBC-45 Flameproof Aluminium Junction Box
Installation Zone: Zone 1, 2, 21, 22
Certification Verification:
ATEX/IECEx
II 2GD Ex db IIC Gb – Ex tb IIIC Db, IP66/67
(IP-67 without Operators mounted on lid/cover)
(IP-66 with Operators mounted on lid/cover)
External Dimensions: 567 × 387 × 298mm
Weight: 38.9kg
- Product Information
- Drawings
- Certificates Download
- Instruction Manuals
- Downloads
| HS Code | 76169910 |
|---|---|
| Country of Origin | Italy |
| Data Sheet | EJBC Data Sheet |
| Standard Paint Specification (RAL7035 Light Grey) | RAL7035 Painting Specification |
Disclaimer: The standard paint specification for Cortem S.p.a. junction boxes, are provided by Cortem S.p.a. to The Ex Zone Limited for informational purposes only.
This document is considered restricted and confidential. It is intended solely for use by customers and partners seeking technical reference related to Cortem S.p.a. products distributed by The Ex Zone Limited.
Unauthorised reproduction, distribution, or use of the contents, in whole or in part, without prior written permission from Cortem S.p.a. is strictly prohibited.
The Ex Zone Limited and Cortem S.p.a. reserve the right to update and modify the specifications at any time without prior notice. For the most current information, please contact The Ex Zone Limited.
By accessing this document, you acknowledge and agree to these conditions.
It may take few seconds before starting to download the files automatically.
| .DWG | |
|---|---|
| .STEP | |
| .IGES |
Disclaimer: .IGES files are replicated by The Ex Zone Limited for reference purposes only. These files do not represent the official drawings of Cortem S.P.A. and are not affiliated with or authorised by Cortem S.P.A.. All rights to the original designs remain the property of Cortem S.P.A. and are protected by copyright.
The Ex Zone Limited accepts no liability for any errors, omissions, or inaccuracies contained within these files, nor for any consequences arising from their use. Use of these files is entirely at user’s own risk.
Redistribution or commercial use of these replicated files without prior written consent from Cortem S.P.A. or The Ex Zone Limited is strictly prohibited
[certificates_download]
Available soon…
| ATEX (Empty Enclosure) | EPT 20 ATEX 4074 U |
|---|---|
| ATEX (Signalling and Interface units) | EPT 20 ATEX 4075 X |
| IECEx (Empty Enclosure) | IECEx EUT 20.0023U |
| IECEx (Signalling and Interface units) | IECEx EUT 20.0024X |
