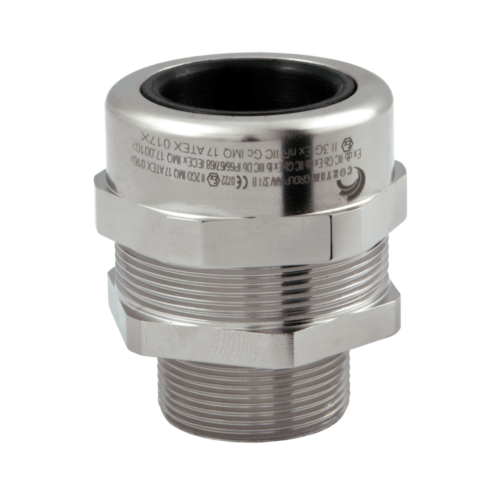

Nickel-plated Brass M20 × 1.5mm Cable Galnd for Non-armoured Cable
Cable Gland Nickel-plated Brass M20 × 1.5mm for Non-armoured cable (Outer Sheath Ø6.5 – 14.0mm)
Product images displayed: NAV cable gland. Refer to specs for your exact model.
- Product Description
- Downloads
| Ex Markings | II 2 GD Ex db IIC Gb – Ex tb IIIC Db II 2 GD Ex eb IIC Gb – Ex tb IIIC Db II 3G Ex nR IIC Gc |
|---|---|
| Ambient Temperature | -60°C to +130°C |
| IP Rating | IP66/68 (30 hours – 12 hours) |
| Material | Nickel-plated Brass |
| Thread Size | M20 × 1.5mm |
| Outer Sheath | Ø6.5 – 14.0mm |
| Weight | 0.13 kg |
| HS Code | 85369095 |
| Country of Origin | Italy |
| Data Sheet | NAV Data Sheet |
| ATEX Certificate (Category 3) | IMG 17 ATEX 017 X |
|---|---|
| ATEX Certificate (Category 2) | IMQ 17 ATEX 016 X |
| IECEx Certificate | IMQ 17.0010 X |
| INMETRO Certificate | DNV 21.0175 X |
