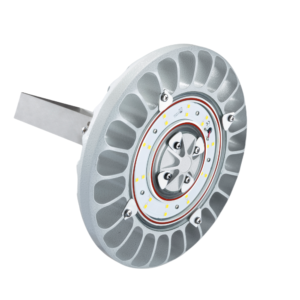

FLOWEX-ME-100140 – High Bay LED Light Fixture 140W
GROUP 2 II CATAGORY 2GD/3G, ZONE 1, 2, 21, 22 HIGH BAY LED FITTING 140W
III 2GD – Ex db eb mb IIC T.. Gb – Ex Ib IIIC T..°C Db – 1966
ATEX CML 21 ATEX 3606X
Supply Voltage 100-277 Vac
Lumen (lm) 20154
Light Intensity (cd) 7086
Overall Efficiency (lm/w) 148
- Product Description
- Downloads
| Ex Markings (Gas) | |
|---|---|
| Ex Markings (Dust) | |
| Zones | Zone 1, Zone 2, Zone 21 & Zone 22 |
| Ambient Temperature | -40°C to +60°C (T4) |
| IP Rating | IP66 (EN 60529) |
| Material | Corrosion Resistant Anodised Aluminium Alloy with Tempered Glass Diffuser (Silicone Gasket) |
| Lighting Dimensions | Ø400mm |
| Supply Voltage | 100-277Vac |
| Rated Power Watt | 140W |
| Rated Frequency | 50 / 60 Hz |
| Lumen | 20154 lm |
| Light Intensity | 7086 cd |
| Overall Efficiency | 148 lm/W |
| Cable Entries | 1 × Ø20.5mm hole complete with 1 NAV20IB cable gland. |
| HS Code | 94054239 |
| Country of Origin | Italy |
| Weight | 7.8 kg |
| Data Sheet | FLOWEX Data Sheet |
| ATEX Certificate | CML 21ATEX 3606X |
|---|---|
| IECEx Certificate | IECEx CML 21.0070X |
| UKEX Certificate | CML 21UKEX3608X |
| Light Photometrics | LDT IES |
